  • Carbon steel hexagonal nuts with nylon locking
  • Carbon steel hexagonal nuts with nylon locking
  • Carbon steel hexagonal nuts with nylon locking

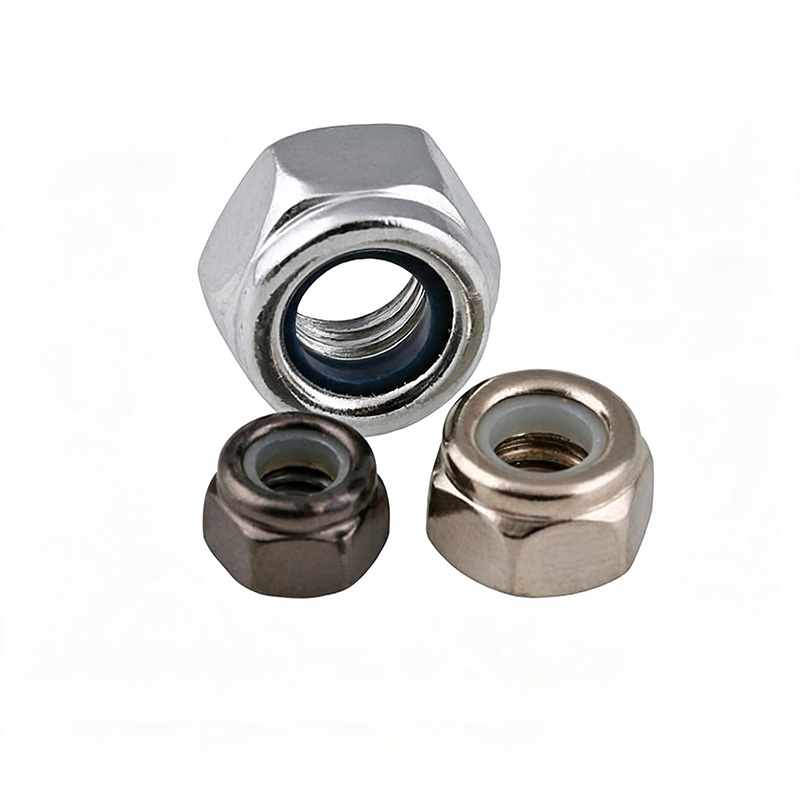

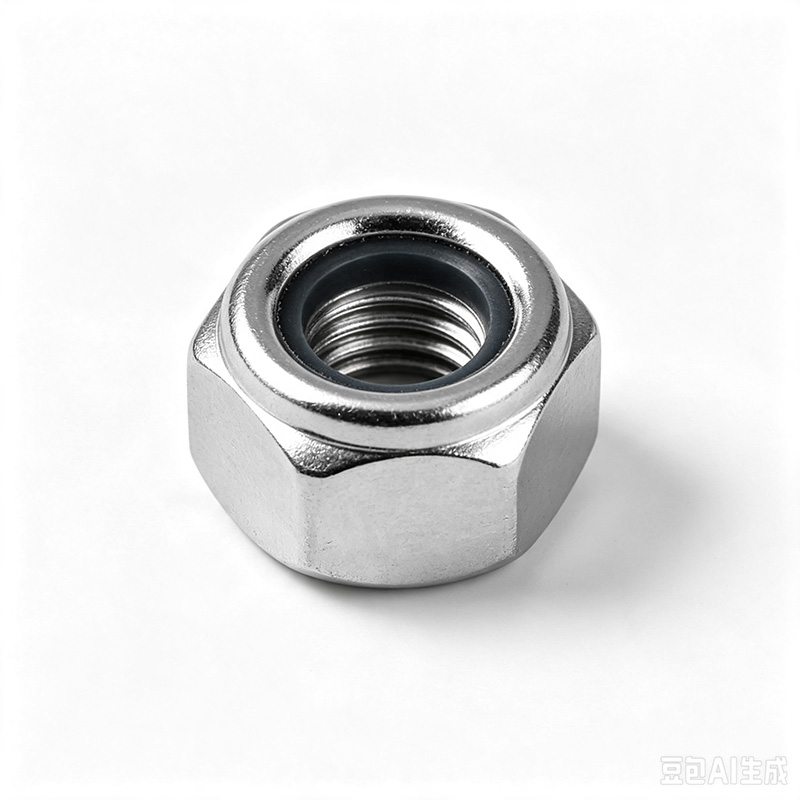

Carbon steel hexagonal nuts with nylon locking
1. Excellent service within 24 hours response
2. High quality with competitive price for sale.
3. Delivery: within 7-15 days or according to quantity
4. Approved by ISO9001, SGS every year
5. Flexible MOQ – 100 pcs trial, volume discounts for bulk.
Whatsapp: +86 158 6558 8686
Mail: info@lz-metal.com
Inquiry Now

→Product Introduction

Name

Carbon Steel Nut

Grade & Material

Grade 4: SWRCH6A / SWRCH8A / SWRCH10A / SWRCH18A / SWRCH22A / Q195 / Q235 / 10# / 15# / 20# / C10E / 1010 / 1018 / A307

Grade 8: 35# / 45# / ML35 / SWRCH32H / 20MnTiB / 40Cr / SCM435 / 35CrMoA / C35E / C45E / 1035 / 1045 / A325 / 4140

Grade 10: 40Cr / SCM435 / 35CrMoA / 42CrMoA / 20MnTiB / 4140 / 4145 / 4340 / A490

Grade 12: 42CrMoA / 42CrMo4 / SCM440 / 30CrMnSi / 4140 / 4340 / 8740

Surface

Plain / Black / Zinc Plated / Hot-Dip Galvanized / Dacromet / Geomet / Phosphated / Nickel Plated / Teflon Coated

Shipping Terms

EXW / FOB / CIF / CFR / CNF

Payment Terms

TT / LC (must 30-50% as despoit, the balance can be paid by LC after BL), etc

Packaging

Standard export packing, various transportation, according to customer needs.

Application

Steel Structure Construction and Bridges / Piping and Equipment Installation / Automobile Manufacturing / Shipbuilding and Vehicles / Machinery and Industrial Equipment / Energy and Power Equipment / Home Appliances / Electronics / Petrochemicals / Aerospace / Medical Devices, etc.


A nut is a threaded fastener with internal threads, used in conjunction with a mating bolt to secure assembled components.

Its hexagonal shape allows easy tightening with standard tools.


Carbon steel nuts provide reliable clamping force, high strength, and cost-effectiveness for industrial and construction applications.


Available Sizes & Dimensions

Parameter

Metric (ISO)

Inch (ANSI/ASME)

Thread Diameter

M4 ~ M64

1/4" ~ 2-1/2"

Thread Pitch

Coarse / Fine per ISO 261/262

UNC / UNF per ASME B1.1

Thread Tolerance

6H (internal) per ISO 965-2

2B (internal) per ASME B1.1

Width Across Flats

Per DIN 934 / ISO 4032

Per ASME B18.2.2

Nut Height

Per DIN 934 / ISO 4032

Per ASME B18.2.2


Mechanical Properties

Grade

Proof Load (MPa)

Hardness (HV)

Hardness (HRB)

4

400

≤ 210

≤ 95

8

800

220-300

95-100

10

1000

280-350

12

1200

320-400


Thread Specifications

Parameter

Metric (ISO)

Inch (ANSI/ASME)

Thread Form

60° V-thread

60° V-thread (Unified)

Thread Standard

ISO 68-1, ISO 261, ISO 262

ASME B1.1

Pitch Designation

Coarse (M10×1.5) / Fine (M10×1.0)

UNC (1/2"-13) / UNF (1/2"-20)

Thread Tolerance

6H (internal) per ISO 965-2

2B (internal) per ASME B1.1


FAQ

FAQ


Q: What are the main products you can supply?

A: We are the professional and famous factory in China for steel pipe and fittings, such as flanges, elbows, bolts and nuts, etc.


Q: What is your minimum order quantity (MOQ)?

A: For trial orders, our MOQ is100 pcs per size. For bulk orders, MOQ is flexible — please contact us with your quantity for a competitive quote. Volume discounts are available for large orders.


Q: How long is the delivery time?

A: 7-15 days for standard sizes in stock after payment confirmation. For custom orders, delivery time is typically 20-30 days, depending on quantity and specifications. We will confirm the exact timeline upon order confirmation.


Q: How do you control quality?

A: We implement 3-stage quality control:

  • Raw material– chemical composition tested by spectrometer
  • Production– dimensional checks during manufacturing
  • Final– 100% thread gauging (Go/No-Go), hardness testing, and proof load testing per ISO 898-2

A Mill Test Certificate (EN 10204 Type 3.1)is provided with every shipment.


Q: Can I get samples before ordering?

A: Yes. Stock samples are free of charge, you only pay the shipping cost. Custom samples require a small production fee, which will be deducted from your first bulk order.


Q: Do you accept OEM or custom orders?

A: Yes, we accept custom orders based on your drawings, specifications, or samples. We can also print your logo on products and packaging. Our engineering team provides a solution within 24 hours.


Q: Which standards do your products comply with?

A: Our carbon steel nuts are manufactured per:

  • ISO 898-2 – Mechanical properties

  • DIN 934 / ISO 4032 – Dimensions (metric)

  • ASME B18.2.2 – Dimensions (inch)

  • ASTM A563 – Carbon steel nut specification (US market)

Our factory is ISO9001 certified and SGS audited annually.
